Description
Compact Efficiency with Excellent Print Quality

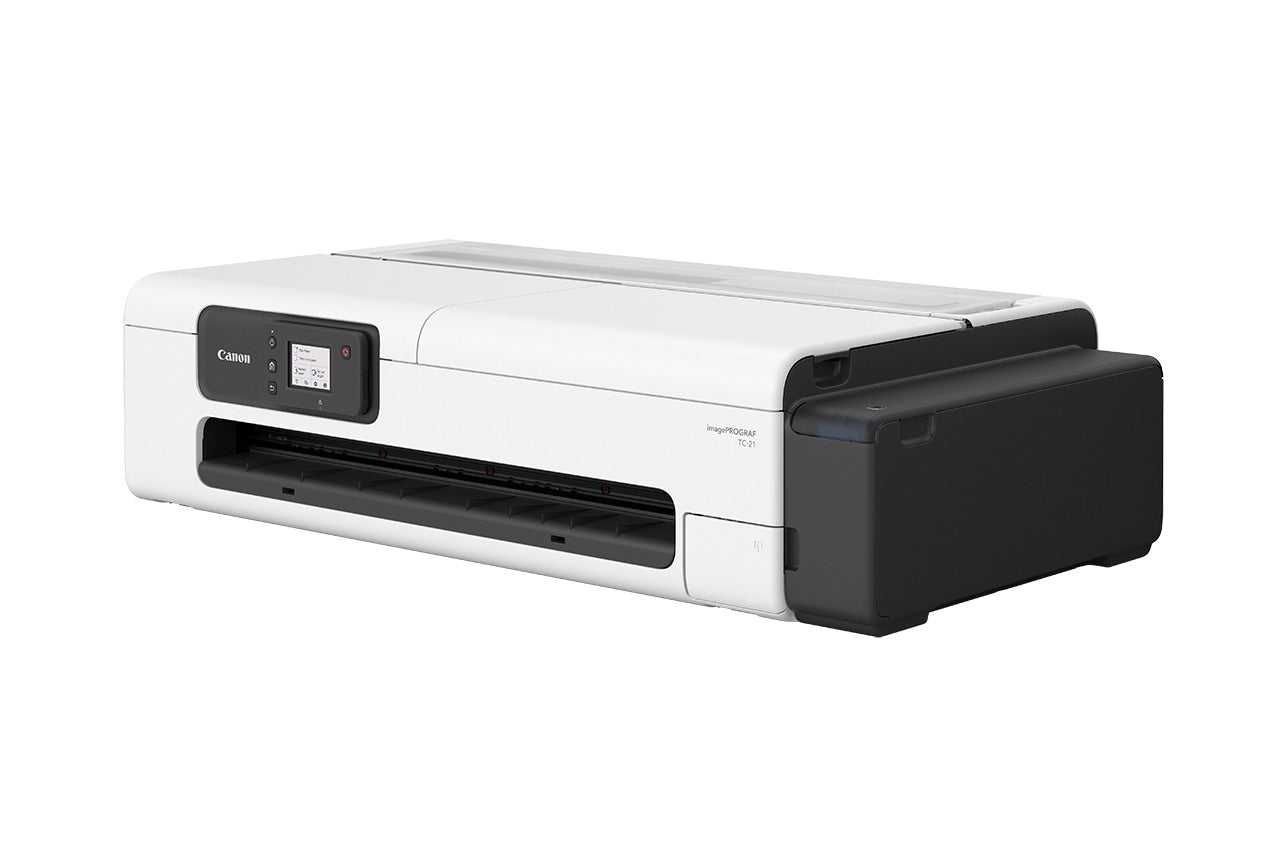

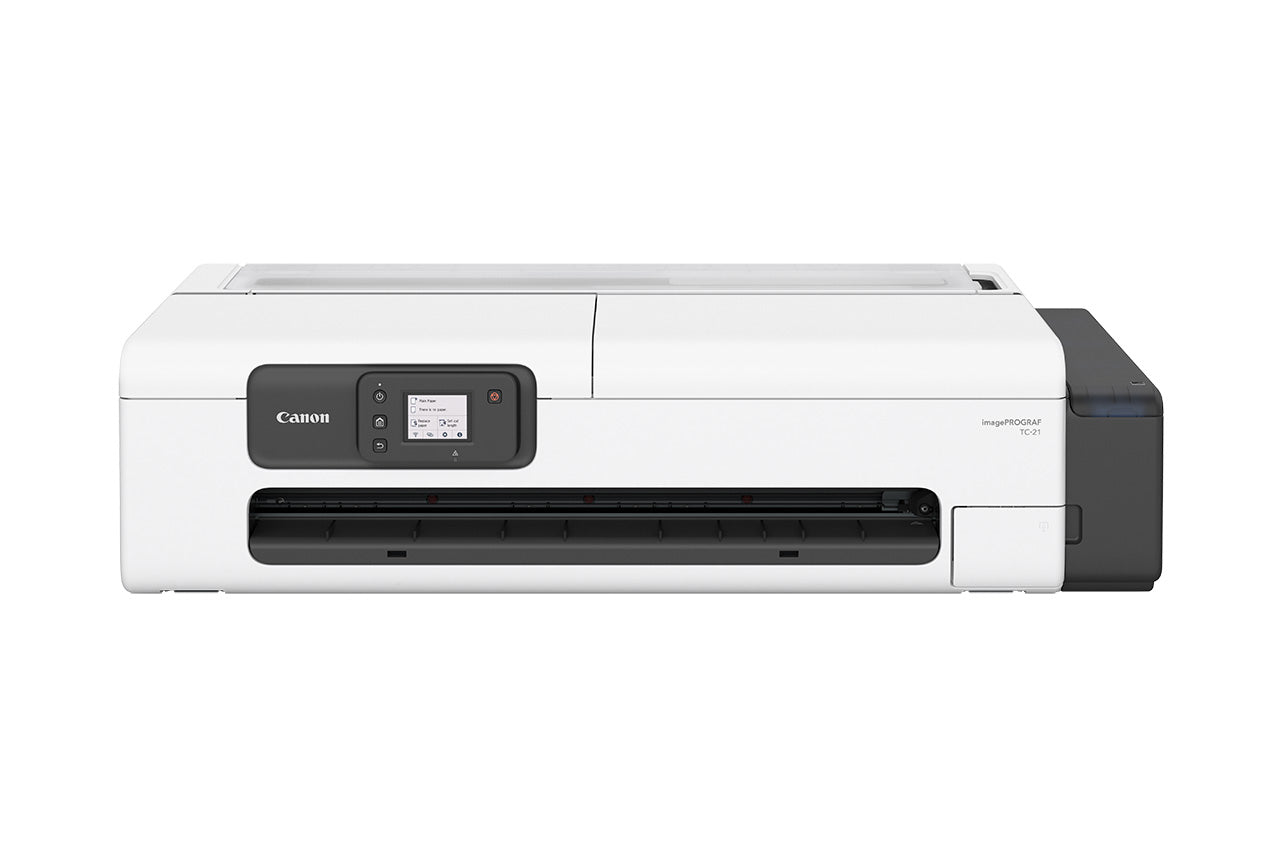

TC-21, 24 inch desktop large format printer comes with roll support and standard built-in auto sheet feeder, produces quality drawings & poster prints for hybrid workplaces.
-Suitable for CAD & poster printing
-4 color pigment ink
-Minimal margin printing
-Space-saving desktop model
-Support free poster & print submission applications
Designed to be installed in a small & tight space to print various document sizes ranging from A6 to A1/24 inches sizes. It can be placed on a desk, cabinet or shelf with a flat top that will fit in a home office or satellite office.
Pigment ink for all colours produces fine lines & texts on drawings and delivers vivid colour expression in posters and flyers, especially in red colour to attract attention. The prints will not smudge easily due to accidental water spills or highlighter markers and remain visible.
Comes with a total of 280 ml of ink (4 x 70 ml) to cater for various applications such as CAD drawings, GIS Maps, posters and flyers, reduces the frequency and effort of ink refills.
Ease of use for daily print operations. Fully front accessibility for loading paper, replenishing ink, and replacing maintenance cartridges.
Roll and cut sheets can be loaded at the same time for easy printing from A6 to A1 sizes to minimise waiting time. Supports wide range of media types like posters, long banner, CAD line drawing, postcard, envelope and label.
Standard built-in auto sheet feeder can support up to 100 A4 or 50 A3 cut sheets* for continuous printing. Lesser downtime to reload paper.
*Plain paper.
Free Poster Application
PosterArtist Web application provides a wide selection of design templates for users to create their own posters, flyers and other graphics easily and send to print.
Direct Print Plus
Job submission tool which supports batch printing of multiple file types, shortcut printing function and job presets, enabling efficient large format printing workflow.
Canon PRINT
Print PDF files wirelessly via mobile app for Android smartphones & tablets. Ability to check the status of printer.
SPECIFICATIONS
|
Printer Type |
4-Colour 24" (610 mm) |
|
Number of Nozzles |
4,352 nozzles (BK 1,280 nozzles, C,M,Y: 1,024 nozzles each) |
|
Maximum Print Resolution |
2,400 × 1,200 dpi |
|
Nozzle Pitch |
1,200 dpi (2 lines) |
|
Line Accuracy*1 |
± 0.1% or less |
|
Ink Capacity |
Sales Ink: 70 ml (BK, C, M, Y) |
|
Ink Type |
Pigment Ink |
|
Printer Language |
SG Raster (Swift Graphic Raster) |
|
Printing Solutions |
Canon PRINT Inkjet/SELPHY (iOS/Android), Canon Print Service (Android), Free Layout Plus, PosterArtist, Direct Print Plus, PIXUS/PIXMA Cloud Link, ChromeOS |
|
Management Solutions |
Media Configuration Tool, Quick Utility Toolbox, Wi-Fi Connection Assistant, Printer Update Utility |
|
Standard Interfaces (Built-in) |
USB B Port (Series B, 4 pins) |
|
Standard Memory |
1 GB |
Power & Operating Requirements
|
Power Supply |
AC 100 - 240 V, 50 - 60 Hz |
|
Power Consumption |
|
|
Printing*12 |
Approx. 28 W |
|
Sleep Mode*12 |
Approx. 1.7 W |
|
Power Off |
Approx. 0.07 W |
|
Operating Environment |
|
|
Temperature |
15 ～ 30°C |
|
Humidity |
10 ～ 80% RH (no dew condensation) |
|
Acoustic Sound |
|
|
Acoustic Power*13 |
Operation: Approx. 6.0 Bels |
|
Acoustic Pressure*13 |
Operation: Approx. 41.5 dB (A) |
Accessories
|
Printer Stand (Optional) |
SD-24 |
|
Desktop Basket |
BU-06 |
Consumables
|
Ink Bottle |
PFI-050 (70 ml) |
|
Print Head |
PF-08 |
|
Maintenance Cartridge |
MC-32 |
