The xTool F1 is the Industry leading ultra-fast IR & diode laser engraver at hand for geeks, experienced laser enthusiasts, DIY hobbyists and small business people to have the ultimate experience.
xTool F1 The world’s first laser engraver that integrates a 2W 1064nm infrared laser with a 10W 455nm diode laser. The xTool F1 can engrave at a maximum speed of 4000mm/s, allowing you to finish a project in the blink of an eye.
xTool F1 Features
- Super Fast: 4000 mm/s engraving speed
- The 0.00199mm ultra-precision technology
- 2W IR laser + 10W diode laser
- xToolCreative Space is compatible with Windows / macOS / iPadOS/ iOS / Android
- Portable & handheld
- xToolF1, RA2 Pro, and Desktop Smoke Purifier, slide extension, Triangular prism working panel
Product Highlights
The Fastest and Finest of Its Kind
Feel the True 4000mm/s Engraving Speed. Adopting TURE Industrial-grade galvanometer system, xToolF1 guarantees extraordinary laser performance.
The extremely high engraving speed is achieved by the advanced Galvo technology. By precisely rotating and adjusting the galvanometer’s x-axis and y-axis mirrors at a high speed, the mirrors deflect the laser beam with various angles to the engraved objects in no time.
See the 0.00199mm Engraving Accuracy
Metal-made with a sturdy structure and precise control of the moving laser beam, xToolF1 ensures high engraving accuracy. All the tiny details of the engraving can be shown clearly.
Focus and Preview -Intelligent in Design
Different from time-consuming manual adjustment of traditional engravers, xToolF1 provides a more friendly and efficient way to set up the machine.
Auto/Manual Focus
Auto: Enter the material thickness in the software, and the laser head will automatically move to keep it in focus
Manual: Turn the knob to adjust the height of the laser head to make sure the two red dots overlap.

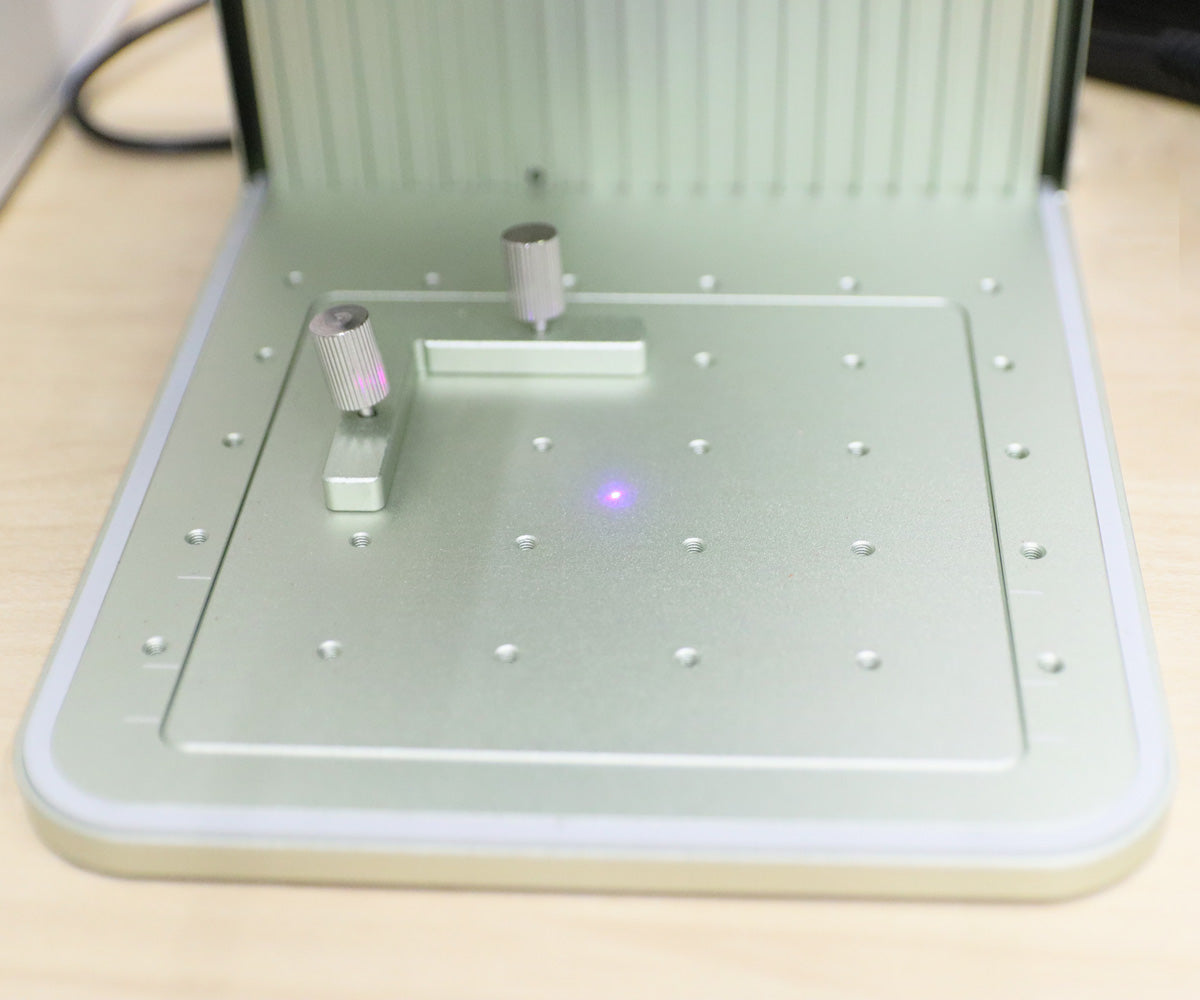

Live Engraving Preview
Preview the design at exactly the position where you are to engrave with the harmless high-speed light running.

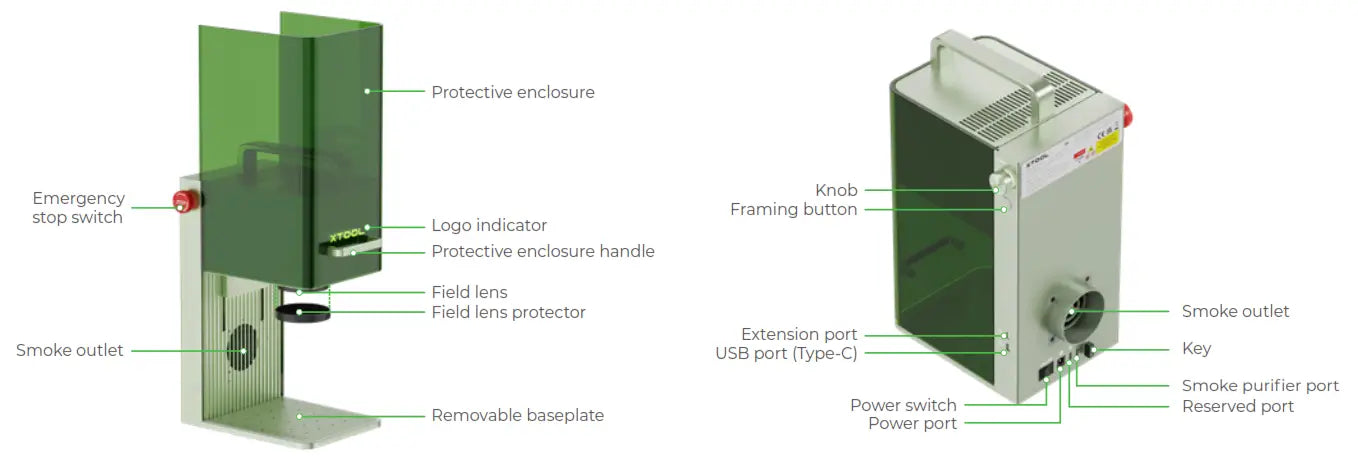

Fully Protected to Engrave Everywhere

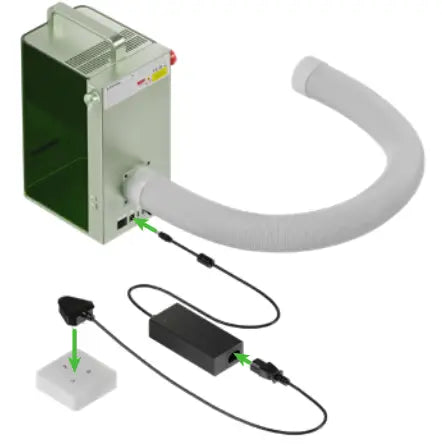

The XTool F1 is safe and clean. The fully enclosed cover locks the powerful laser lights and unpleasant smoke inside. With a built-in fan and air purifier quickly extracting smoke and smell, you can engrave in a private space or show it in public with peace of mind.
XTool F1 Engraving Materials
10W Blue Diode Laser
- Wood
- Acrylic
- Glass
- Paper
- Leather
- Ceramic
- Rock
2W IR 1064 Laser
- Plastic
- Aluminium
- Stainless Steel
- Iron
- Gold
- Platinum
- Silver
Laser Cutting With xTool F1
The 10W blue laser gives xToolF1 enough power to directly cut materials after engraving.
Up to 8mm wood
Up to 5mm Acrylic
Specifications
| Type |
Details |
| Laser type |
10W diode laser +
2W 1064nm infrared laser |
| Product size |
179mm*235mm*334mm |
| Product weight |
4.6kg
|
| Accuracy |
Movement accuracy：0.00199mm
Repeat positioning accuracy：0.000248mm |
| Working area |
115*115mm rounded rectangle
Expandable to 400*115mm with accessories |
| Preview |
Rect & Outline |
| Preview speed |
Rect：12000mm/s
Outline：8000mm/s |
| Up to working speed |
4000mm/s |
| Applications |
XCS / Lightburn |

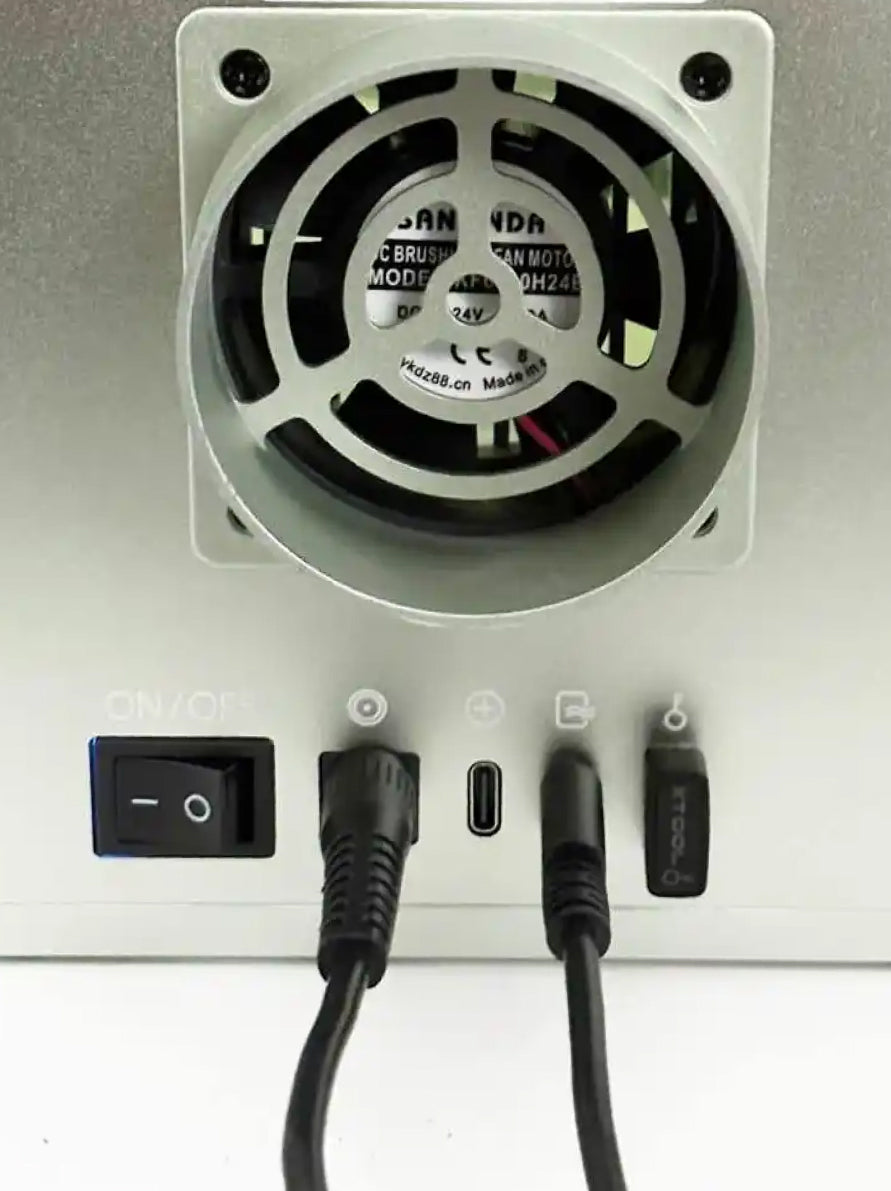

| Connection |
WiFi & USB |
| Support file |
SVG / DXF / JPG / JPEG / PNG / BMP,etc. |
| Support systems |
Android / iOS / iPad / Windows / macOS |
| Input |
24V 5A |
